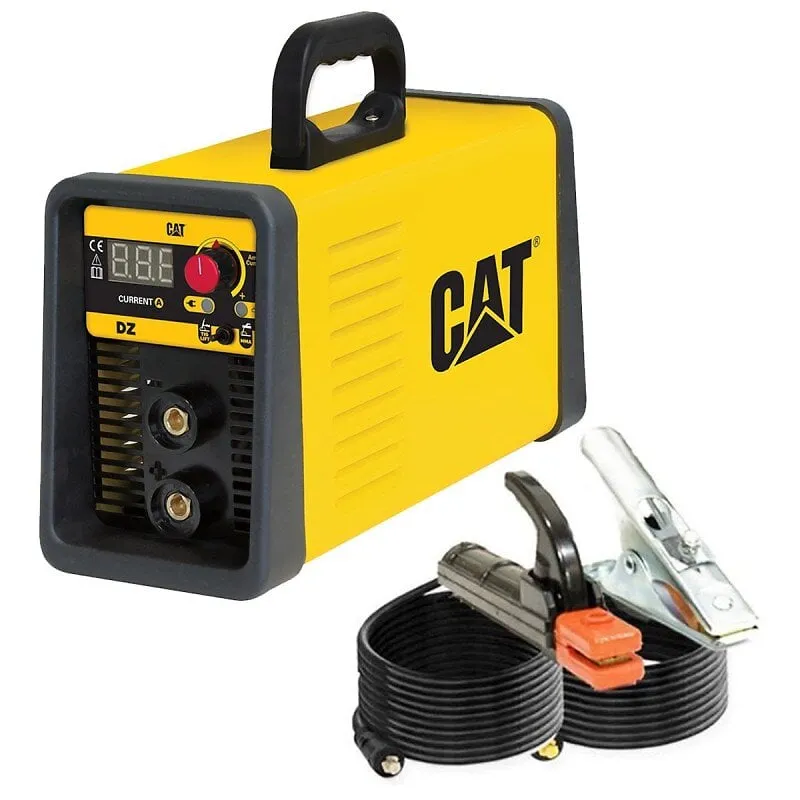

Cat DZ161 230volt Invertor Welder 15-160amp

Cat DZ161 230volt Invertor Welder 15-160amp

Cat DZ161 230volt Invertor Welder 15-160amp

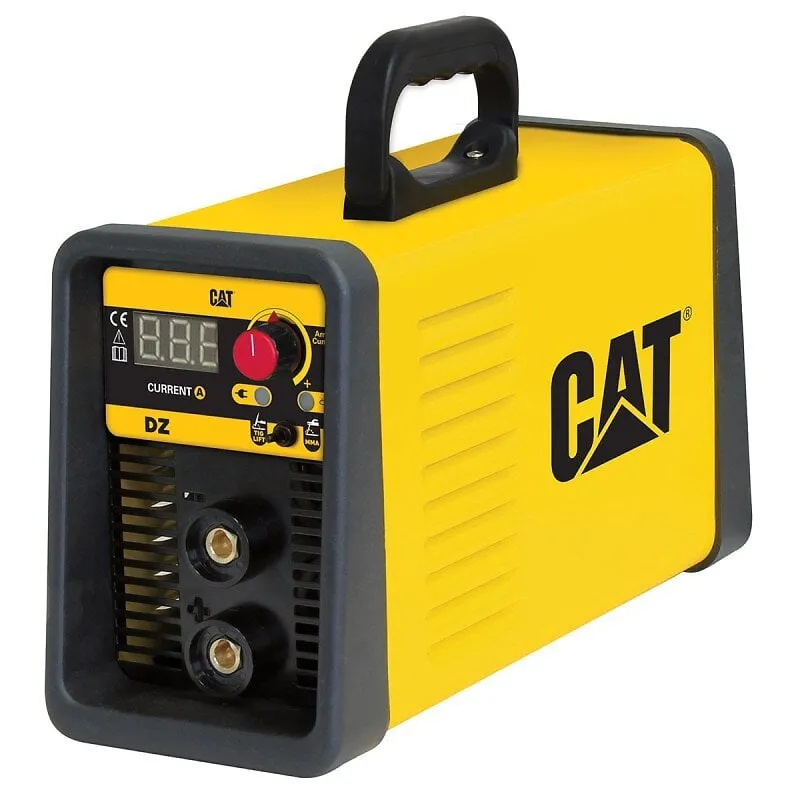

The CAT DZ161 MMA/TIG Welder delivers professional-grade performance with advanced INVERTER technology and IGBT control, ensuring precision, stability, and reliability for even the most demanding users. Designed to meet global standards, this compact yet powerful unit provides exceptional welding quality across a range of materials.

Key Functions

• Arc Force: Maintains a stable, consistent arc for smoother results.

• Hot Start: Simplifies arc ignition for easier electrode striking.

• Anti-Stick: Automatically cuts power if the electrode sticks, protecting both the machine and your workpiece.

 Features & Benefits

• Equipped with temperature sensors and a digital LCD display for real-time amperage control and monitoring.

• Compatible with electrodes from 1.6 mm to 4.0 mm, including rutile, steel, stainless steel, cast iron, and cellulose types (6013, 308, 7018, A5.15).

• TIG Lift Arc function ensures clean, precise welds on thin sheet metal — ideal for automotive, bodywork, and fine fabrication (TIG torch with DINSE 25 connector required, not included).

• Compact and portable design, perfect for site or workshop use.

Technical Specifications

• Input voltage: 230V single phase

• Compatible with 7.5 kW generators

• Absorbed power: MMA 5 kW / TIG 3.3 kW

• Effective current: MMA 12.9A / TIG 8.7A

• Nominal input current: MMA 28.8A / TIG 19.3A

• No-load voltage: MMA 90V / TIG 14V

• Welding current range: 15–160A

• Duty cycle (40°C): 15% @ 160A

• Electrode diameter: 1.6–4.0 mm

• Insulation class: H

• Power cable: 2 m

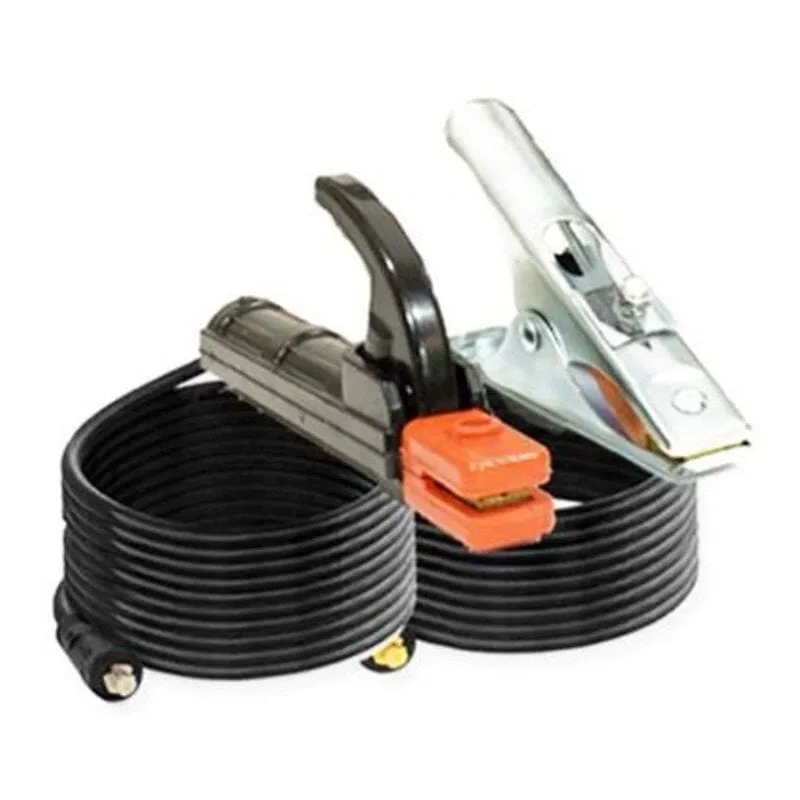

• Ground and electrode cables: 1.8 m each

• Dimensions: 19.5 × 13.5 × 36.5 cm

• Weight: 4.2 kg
